Technology

Energy, Engineered at the Material Level

At NXT VOLT, technology is not applied—it is embedded.
Our systems are designed to function as architectural materials first, and energy systems second.

Every panel, surface, and glazing solution is engineered to perform under Indian conditions—high heat, humidity, dust loads, and structural demands—while maintaining design integrity.

Our Product Platform

SolarFacade Pro

Opaque BIPV Cladding System

SolarFacade Lite

Semi-Transparent BIPV Glass

Solar Roof

Integrated BIPV Roofing System

SolarFlex

Flexible Solar System

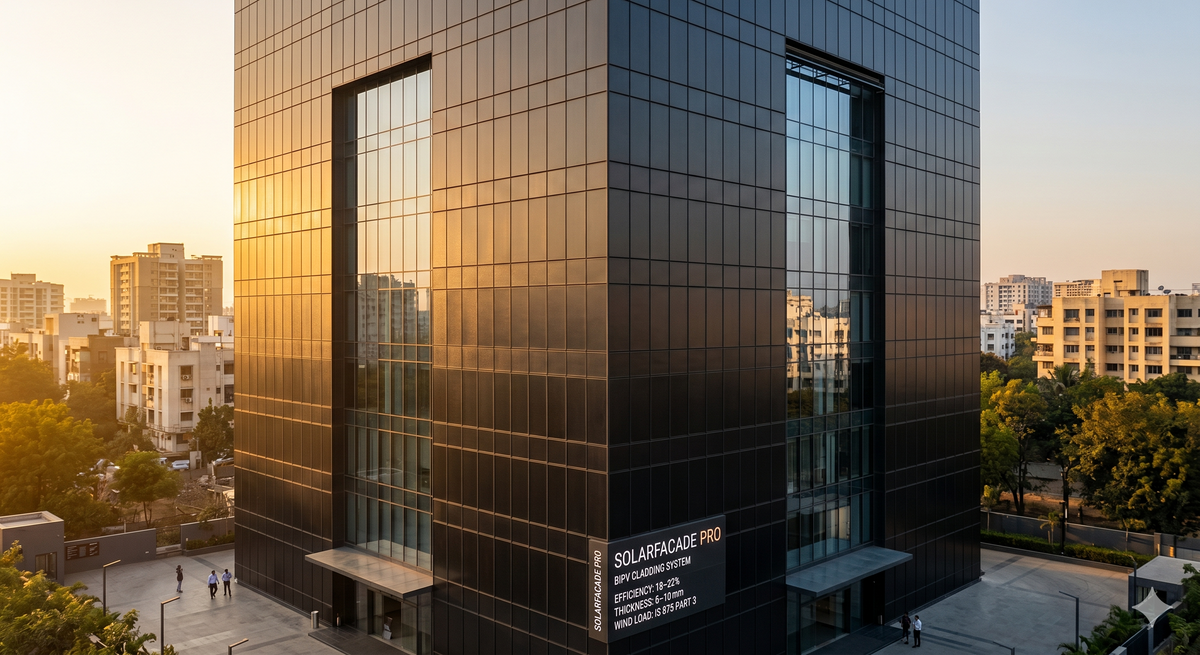

SolarFacade Pro

Designed as a direct replacement for conventional facade materials, SolarFacade Pro transforms vertical surfaces into high-performance energy assets—without altering the architectural intent.

The system delivers a uniform, monolithic finish, eliminating visible cell patterns and maintaining clean facade lines across large surfaces.

Where It Excels

  • High-rise facades
  • Commercial buildings
  • Institutional projects
  • Feature elevations

Specifications

Efficiency: 18-22%
Thickness: 8-10 mm
Power Rating: 110-190 Wp/m2
Color: 10+ options
Application: Curtain wall, Cladding

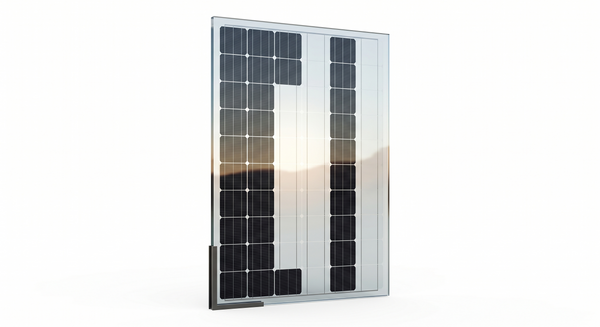

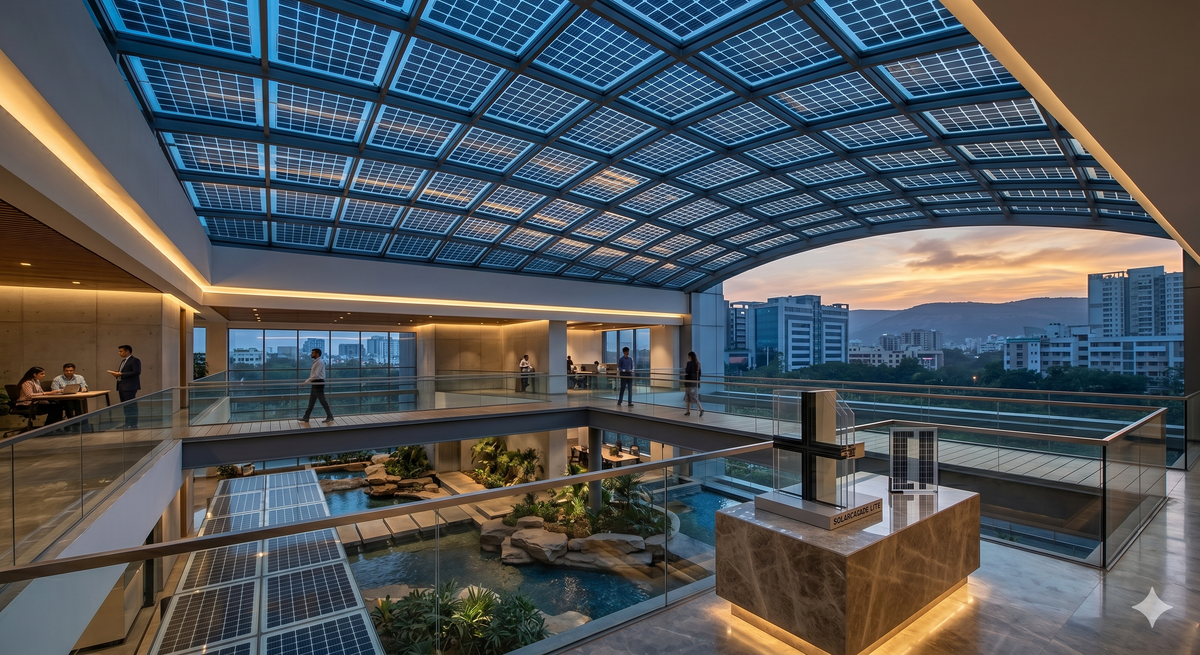

SolarFacade Lite

SolarFacade Lite redefines glass as an active energy surface.
Engineered for daylighting environments, it balances natural light transmission with energy generation—turning every glazed surface into a functional asset.

It integrates seamlessly into modern curtain wall systems, skylights, and atriums without compromising transparency or thermal performance.

Where It Excels

  • Skylights and atriums
  • Curtain wall vision panels
  • Premium commercial spaces
  • Hospitality and retail environments

Specifications

Efficiency: 8-14%
Thickness: 8-10 mm
Transparency: 10-40%
Power Rating: 110-190 Wp/m2
Application: Glass Facade, Skylight

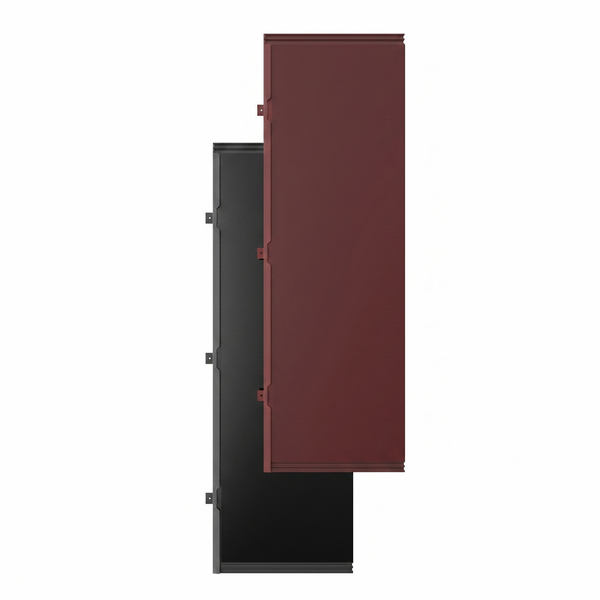

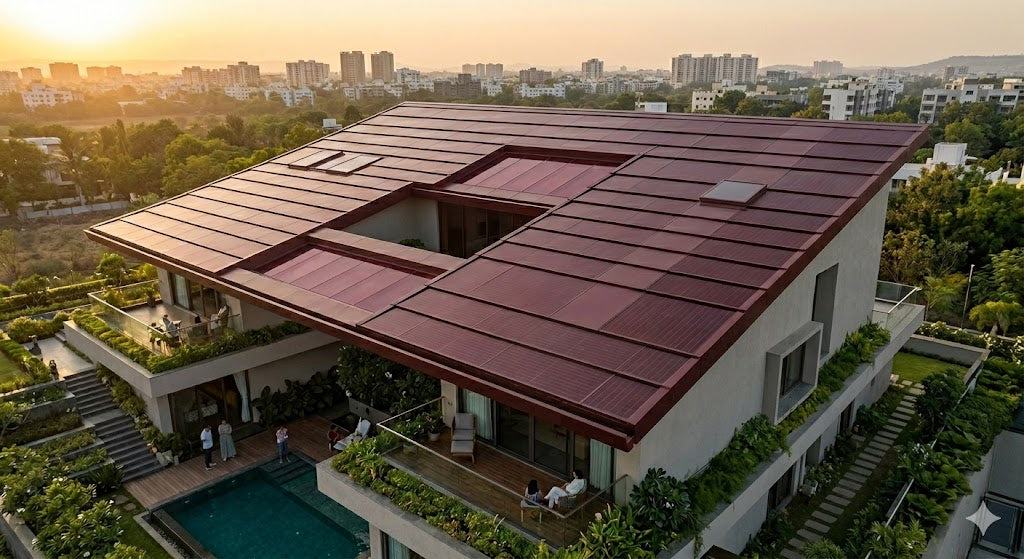

Solar Roof

SolarRoof replaces conventional roofing materials entirely—combining protection, performance, and energy generation in a single system.

Designed for sloped roofs and architectural applications, it delivers a clean, premium finish while maintaining full waterproofing and structural reliability.

Where It Excels

  • Clubhouses
  • Villas and premium residences
  • Sloped commercial roofs
  • Architectural feature roofs

Specifications

Efficiency: 16–20%
Power Rating: 80-100 Wp/m2
Pitch Range: 15°–60°
Colors: Black or Red
Application: Sloped Roofs, Canopies

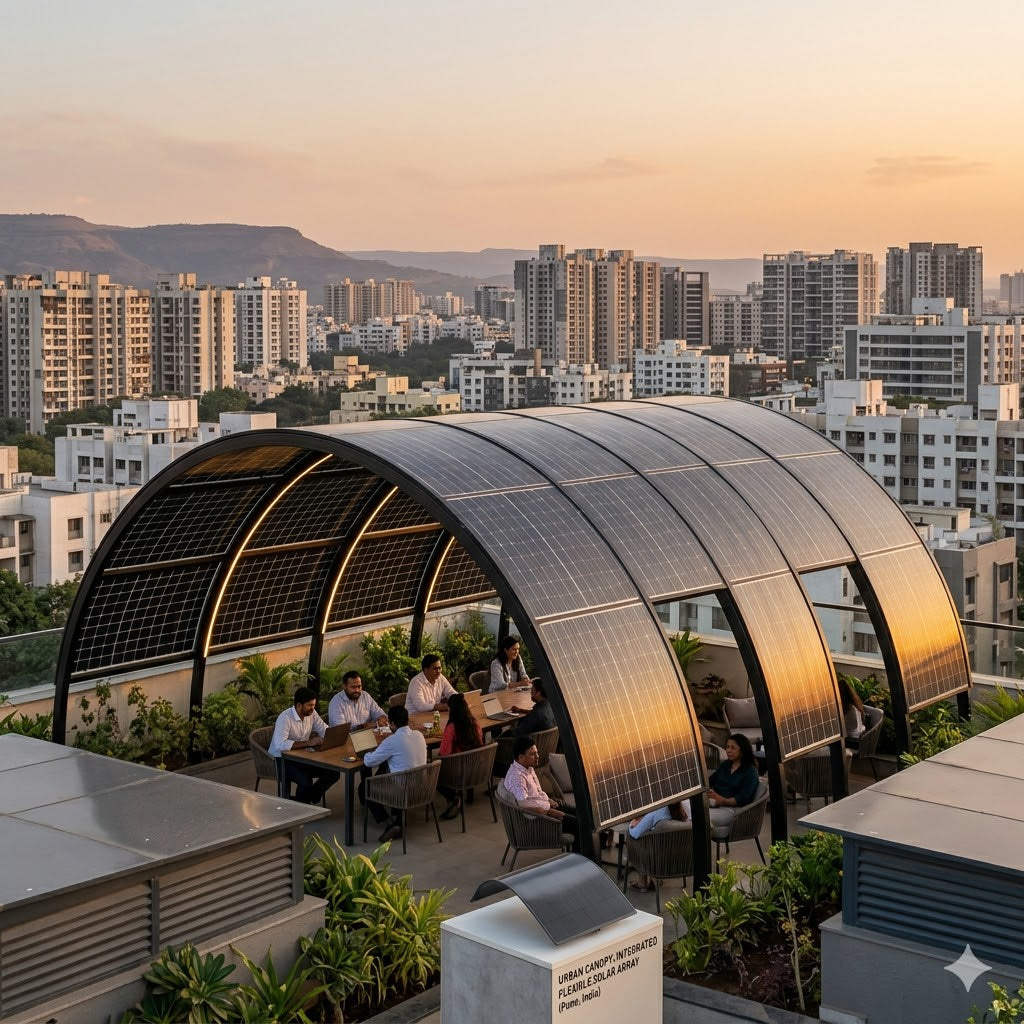

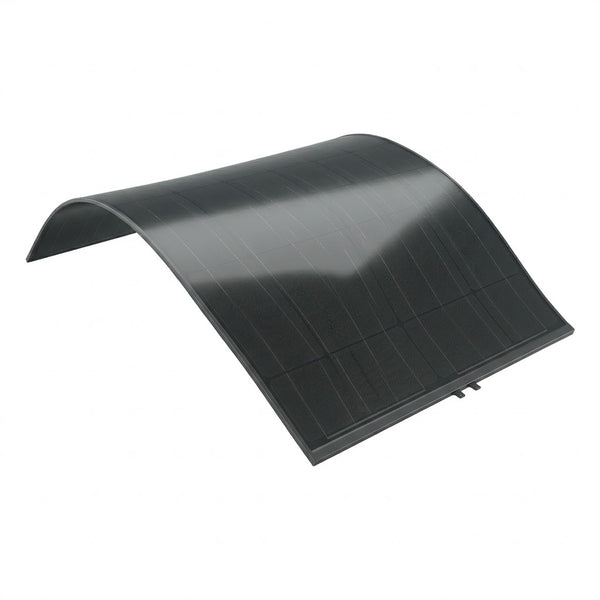

SolarFlex

SolarFlex expands the boundaries of where solar can exist.
Lightweight, bendable, and highly adaptable, it enables energy integration across curved, irregular, and load-sensitive surfaces where conventional panels are not viable.

Designed for applications where design freedom is critical, SolarFlex allows architects and developers to incorporate solar without structural limitations.

Where It Excels

  • Curved facades and roofs
  • Tensile structures and canopies
  • Metal roofs and lightweight structures
  • Retrofit applications
  • Mobility and temporary installations

Specifications

Efficiency: 14–18%
Weight: Ultra-lightweight (up to 70% lighter than conventional panels)
Thickness: <3 mm
Flexibility Radius: Up to 30° bend
Mounting: Adhesive / Mechanical
Application: Curved Surfaces, Lightweight Roofs

Engineered For Indian Conditions

Our systems are tested and optimized for:

  • High UV exposure
  • Coastal humidity and corrosion
  • Dust and pollution loads
  • Thermal expansion and stress
  • Structural wind loads

This ensures long-term reliability across diverse environments

Design Flexibility

Technology should adapt to architecture—not the other way around.

Our systems offer:

  • Multiple finishes and textures
  • Color customization
  • Variable transparency levels
  • Modular integration with facade systems

Enabling complete design freedom without sacrificing performance.

Integration Capabilities

We work seamlessly with:

  • Curtain wall systems
  • Structural glazing
  • Cladding assemblies
  • Roofing systems

Ensuring compatibility from concept to execution.
